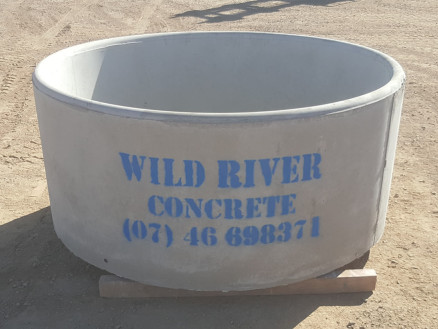

1000L Round Trough

Specifications: Model R10

Diameter Outside: 1600mm  ( 5’4″)
Height: 700mm (2’4″)
Weight: 920kg
Volume: 1000 ltr (220 gal)
Inlet Size: 50mm (2″)
Outlet Size 100mm (4″)

Key Features

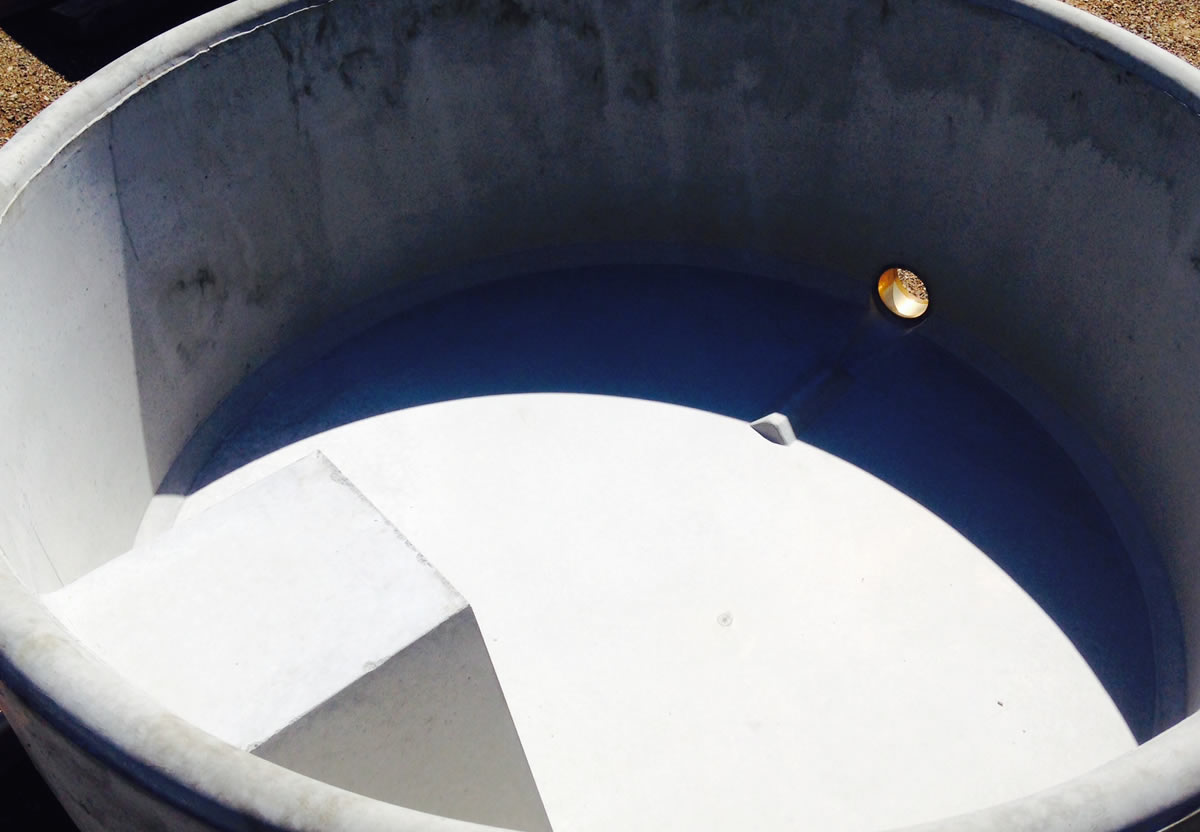

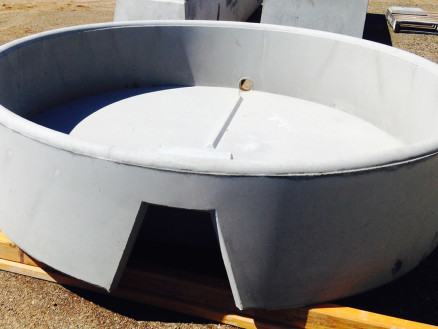

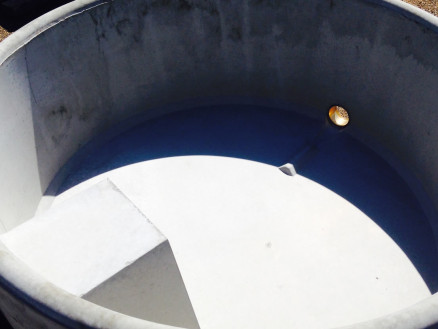

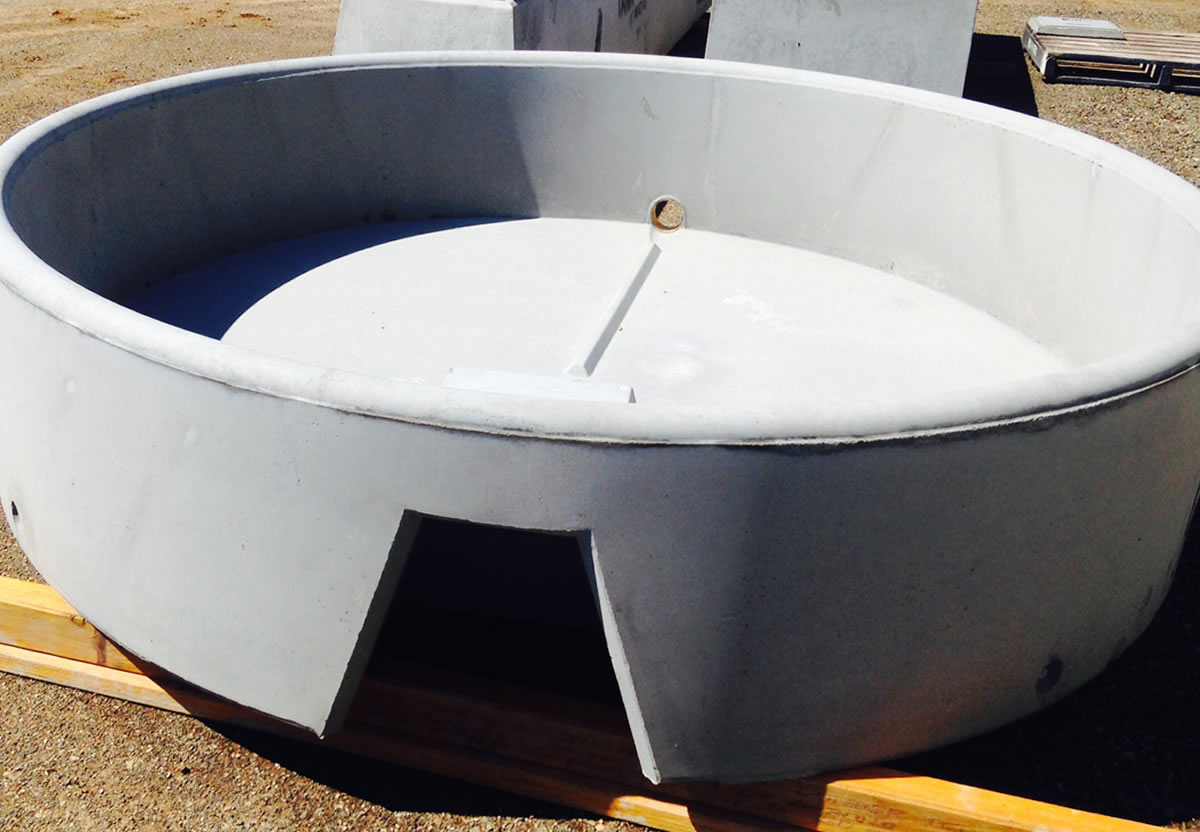

Wild River Concrete manufacture and distribute the highly regarded Mid West Concrete round 1000L troughs. They are designed with a plumbing recess to keep the water inlet pipe away from stock. The trough has a rounded top edge and a smooth double vibrated finish. There is a water sump at the outlet for ease of cleaning.

The round trough can be installed with an optional concrete float protector which stands in the base of the trough and has a cut-out that sits over the inlet recess ledge. The weight is approx. 250kg and saves the float valve from damage if stock get into the trough.
